Plot Single-Cell Summary Distribution Quality (Comparative Overlays)

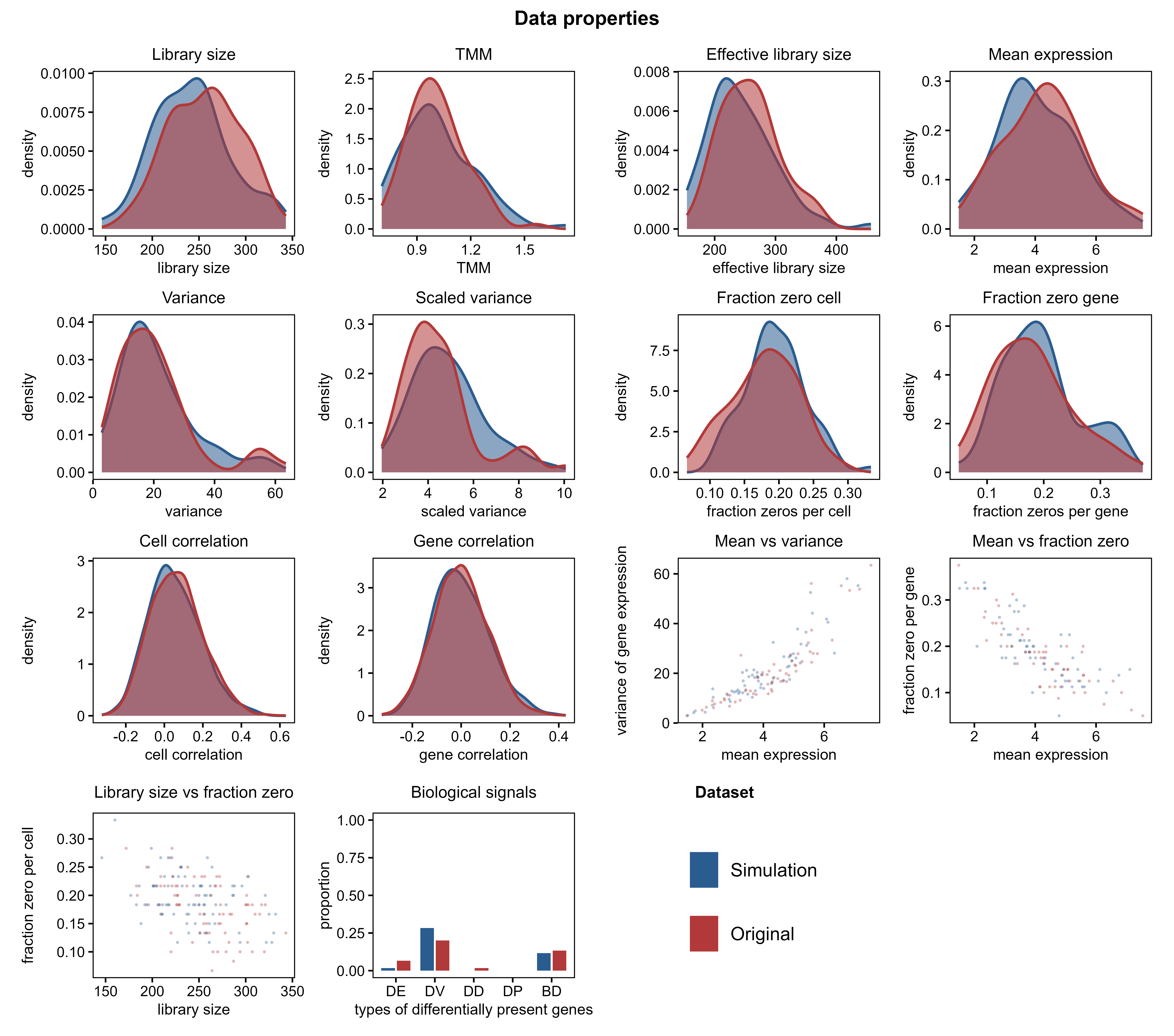

Compares empirical reference and simulated datasets across canonical single-cell summary properties: library size, TMM, effective library size, mean expression, feature variance, scaled variance, fraction zero per cell, fraction zero per gene, cell-cell correlation, gene-gene correlation, and bivariate relationships (mean vs. variance, mean vs. zero fraction, library size vs. zero fraction, and biological signals). Designed after landmark benchmarking studies (countsimQC / Duo et al.) with a clean, human-crafted scientific layout featuring solid visible contour lines, semi-transparent color-filled density curves, and simple understated titles.

Usage

plot_distribution_qc(
  ref_data,
  sim_data,
  layout = c("comprehensive", "density"),
  properties = NULL,
  title = "Data properties",
  ref_name = "Original",
  sim_name = "Simulation",
  palette = NULL,
  cell_types = NULL,
  base_size = 9
)

Arguments

ref_data

Numeric count matrix for empirical reference (features x cells).

sim_data

Numeric count matrix for simulated data (features x cells), or a named list of simulated count matrices representing multiple simulators (e.g. list("scDesign3" = m1, "Splatter" = m2)).

layout

Character. Visualization layout: "comprehensive" (default 14-panel benchmarking grid matching canonical single-cell papers) or "density" (faceted density curves only).

properties

Optional character vector of specific properties to include if custom selection is desired.

title

Character. Main plot title. Default "Data properties". Set to NULL for no title.

ref_name

Character. Label for the empirical reference in the legend. Default "Original".

sim_name

Character. Label for the simulation if a single matrix is provided. Default "Simulation".

palette

Optional named character vector of colors. Default uses warm red for reference and classic steel blue for simulation.

cell_types

Optional factor or character vector of cell identities for computing biological signal proportions.

base_size

Numeric. Base font size. Default 9.

Value

A ggplot or patchwork composite object containing the comparative panels.

Details

Examples

data(example_scrna, package = "scSimEval")
res <- evaluate_simulation_accuracy(example_scrna$ref, example_scrna$sim)
#> [1/5] Extracting cell-level properties...
#> [2/5] Extracting feature-level properties...
#> [3/5] Computing univariate accuracy metrics...
#> Metric: 'bhattacharyya' with unit: 'log'; comparing: 2 vectors
#> Metric: 'bhattacharyya' with unit: 'log'; comparing: 2 vectors
#> Metric: 'bhattacharyya' with unit: 'log'; comparing: 2 vectors
#> Metric: 'bhattacharyya' with unit: 'log'; comparing: 2 vectors
#> Metric: 'bhattacharyya' with unit: 'log'; comparing: 2 vectors
#> Metric: 'bhattacharyya' with unit: 'log'; comparing: 2 vectors
#> Metric: 'bhattacharyya' with unit: 'log'; comparing: 2 vectors
#> Metric: 'bhattacharyya' with unit: 'log'; comparing: 2 vectors
#> Metric: 'bhattacharyya' with unit: 'log'; comparing: 2 vectors
#> Metric: 'bhattacharyya' with unit: 'log'; comparing: 2 vectors
#> Metric: 'bhattacharyya' with unit: 'log'; comparing: 2 vectors
#> [4/5] Computing bivariate metrics (Fasano-Franceschini, Peacock, KDE zstat, 2D EMD)...
#> Warning: argument is not numeric or logical: returning NA
#> Warning: emd: Maximum number of iterations has been reached (500)
#> Warning: argument is not numeric or logical: returning NA
#> Warning: emd: Maximum number of iterations has been reached (500)
#> Warning: argument is not numeric or logical: returning NA
#> Warning: emd: Maximum number of iterations has been reached (500)
#> Warning: argument is not numeric or logical: returning NA
#> Warning: emd: Maximum number of iterations has been reached (500)
#> [5/5] Computing zero-probability and manifold distances...
#> Unimodal accuracy evaluation complete.
data(example_scrna)

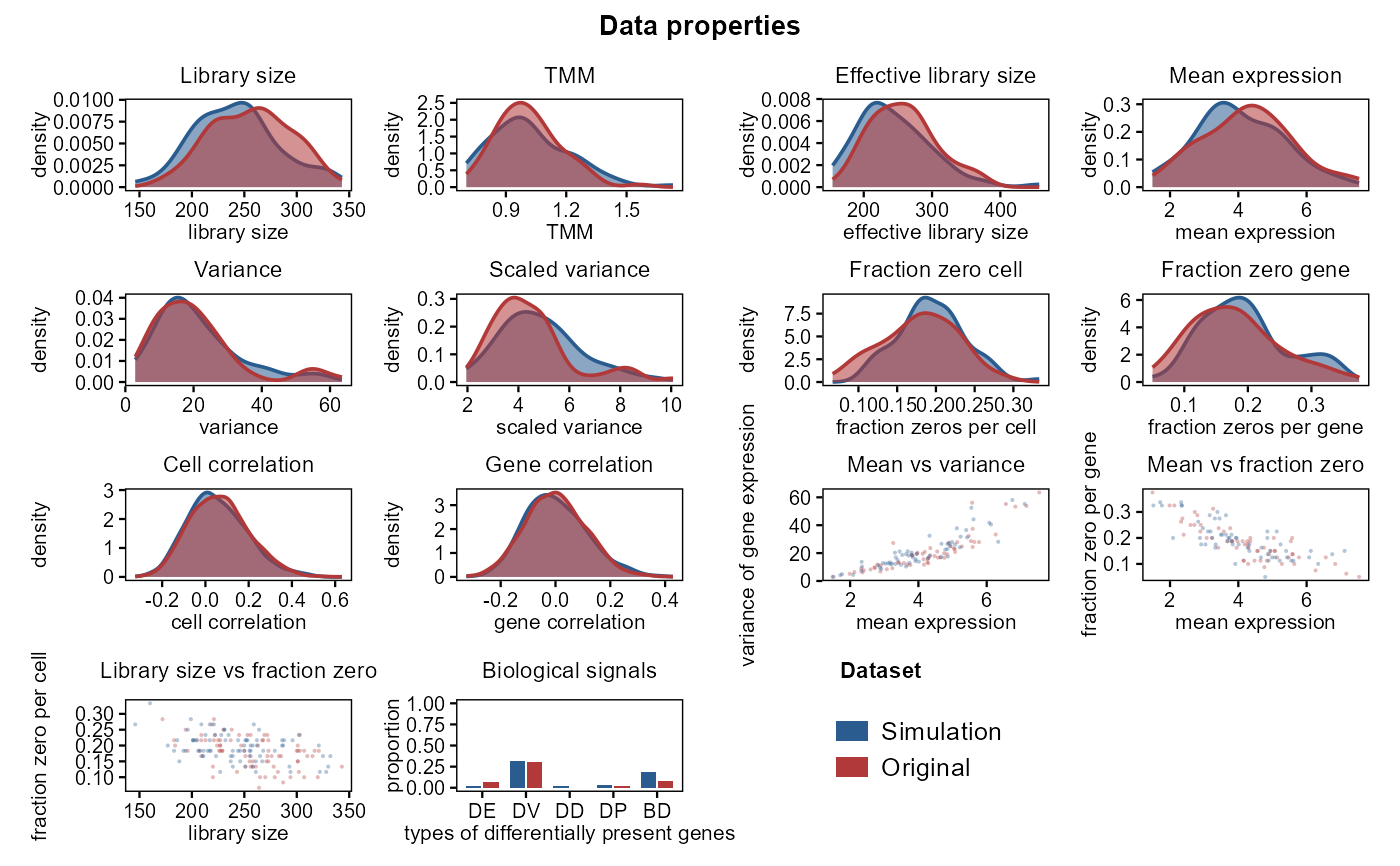

p <- plot_distribution_qc(example_scrna$ref, example_scrna$sim)
if (requireNamespace("ggplot2", quietly = TRUE)) print(p)
