Plot Multi-Dimensional Benchmarking Bubble Matrix — plot_benchmark_bubble

Produces a multi-dimensional benchmarking bubble matrix comparing simulation methods. Methods appear as rows; evaluation metrics appear as columns grouped under the eight canonical evaluation categories (I-VIII) displayed as colored header strips at the top.

Usage

plot_benchmark_bubble_matrix(
  data,
  method_classes = NULL,
  category_colors = NULL,
  metrics_order = NULL,
  methods_order = NULL,
  rank_methods = TRUE,
  compact_strips = TRUE,
  normalize_scores = TRUE,
  show_missing_dots = TRUE,
  bubble_size_range = c(2, 7.8),
  title = NULL,
  subtitle = NULL,
  base_size = 11,
  show_score_labels = FALSE
)

plot_bubble_matrix(
  data,
  method_classes = NULL,
  category_colors = NULL,
  metrics_order = NULL,
  methods_order = NULL,
  rank_methods = TRUE,
  compact_strips = TRUE,
  normalize_scores = TRUE,
  show_missing_dots = TRUE,
  bubble_size_range = c(2, 7.8),
  title = NULL,
  subtitle = NULL,
  base_size = 11,
  show_score_labels = FALSE
)

Arguments

data

Input data. One of:

An scSimEval_consolidated object from evaluate_multiple_datasets().
A named list of benchmark outputs from evaluate_simulation_accuracy().
A tidy data.frame with columns: Method, Metric, Category, and Score (or Value).

method_classes

Optional named list mapping method names to row group labels. E.g. list("scRNA-seq" = c("Splatter", "SymSim"), "Multiomics" = c("scDesign3", "dyngen")).

category_colors

Optional named character vector to override the canonical palette.

metrics_order

Optional character vector for explicit metric ordering (left to right).

methods_order

Optional character vector for explicit method ordering (top to bottom).

rank_methods

Logical. Automatically rank methods along the vertical axis by mean overall fidelity score. Default TRUE.

compact_strips

Logical. Use compact two-line facet strip titles for clean horizontal layout. Default TRUE.

normalize_scores

Logical. Normalize raw distances into [0, 1] fidelity scores. Default TRUE.

show_missing_dots

Logical. Show grey dots for missing metric combinations. Default TRUE.

bubble_size_range

Numeric vector of length 2: min and max bubble size. Default c(2.0, 7.8).

title

Character. Main plot title. If NULL, dynamically derived from metric count.

subtitle

Character. Plot subtitle.

base_size

Numeric. Base font size. Default 11.

show_score_labels

Logical. Annotate bubbles with numeric score. Default FALSE.

Value

A ggplot object rendering the multi-dimensional bubble matrix.

Details

Benchmarking Bubble Matrix

Bubble encoding:

Size: Normalized fidelity score [0, 1] – larger = better performance.
Fill color: Evaluation category (one of the eight canonical groups).
Circle (shape 21): Regular performance (score < 0.96).
Square (shape 22): Top performer (score >= 0.96).
Small grey dot: Metric not available/computed for that method.

Score normalization is direction-aware: distance/error metrics are inverted so that 1 always means best performance, while concordance/correlation metrics are used directly (higher = better).

Examples

# Tidy benchmark data frame of standardized scores
bm_df <- data.frame(
  Method   = rep(c("Splat", "scDesign3", "SymSim", "dyngen"), each = 4),
  Category = rep(c("Accuracy", "Accuracy", "Cellular Structure", "Scalability"), 4),
  Metric   = rep(c("KS Distance", "Wasserstein", "Silhouette ASW", "CPU Time"), 4),
  Score    = c(0.8, 0.7, 0.9, 0.6, 0.5, 0.8, 0.6, 0.5, 0.8, 0.7, 0.6, 0.5, 0.7, 0.6, 0.9, 0.5)
)

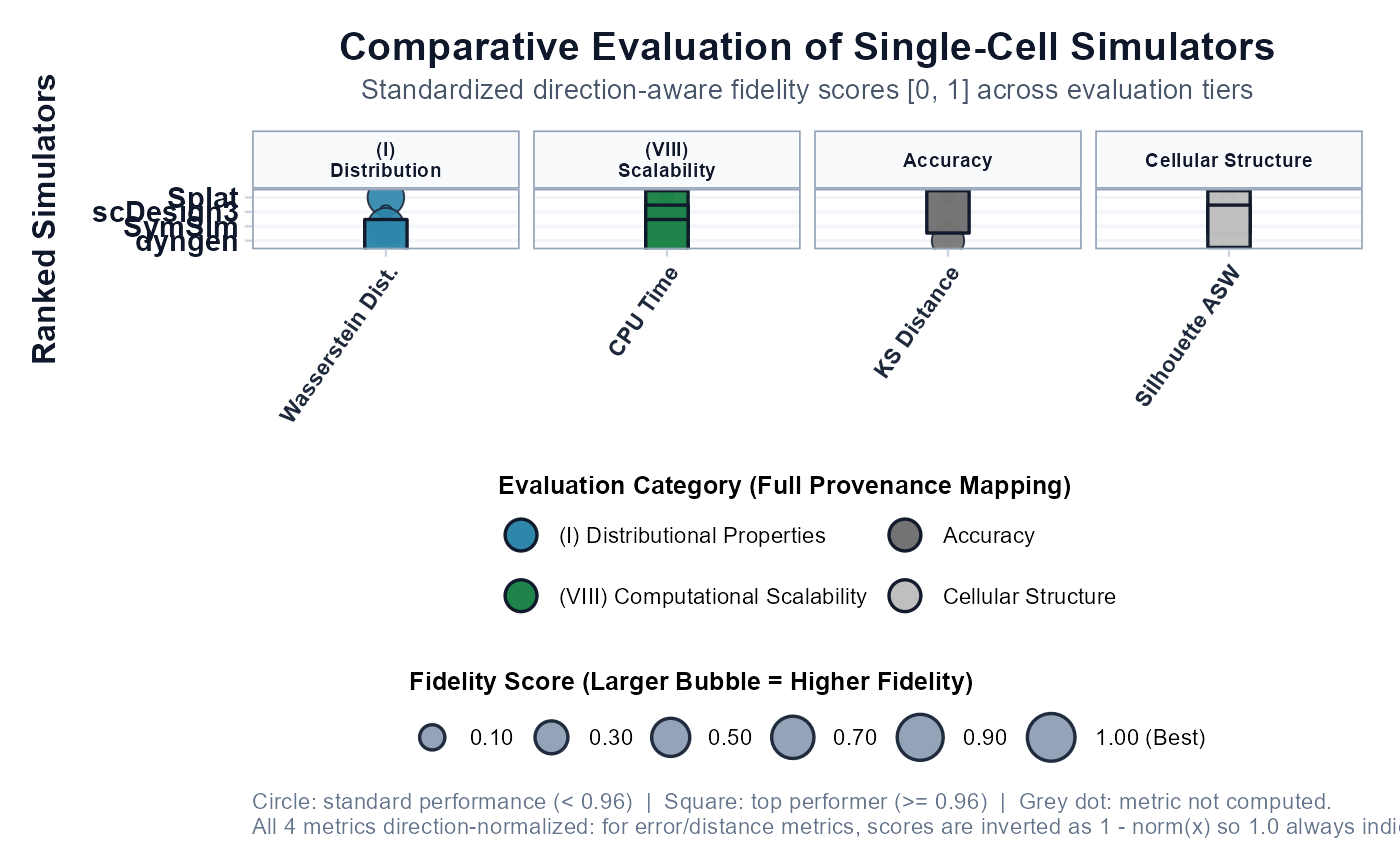

p <- plot_benchmark_bubble_matrix(bm_df)
p

# \donttest{
# Load benchmark summary across simulators
demo_file <- system.file("shiny/scSimEvalApp/data/demo_benchmark_data.rds", package = "scSimEval")
if (file.exists(demo_file)) {
  demo <- readRDS(demo_file)
  p <- plot_benchmark_bubble_matrix(
    data = demo$benchmark_summary_table,
    title = "Single-Cell Multiomics Simulation Benchmark",
    method_classes = list(
      "scRNA-seq"  = c("Splatter", "SymSim"),
      "scATAC-seq" = c("simATAC", "SCRIP"),
      "Multiomics" = c("scDesign3", "dyngen")
    )
  )
  print(p)
}

# }
